Collars, Bushes & Washers

All measurments are in mm


Collars

Part Number Internal Diameter (d) External Diameter (D) Head Diameter (B) Total Height (L) Shank (H)
FD-BOM-62 10.5 15 19 25.5 24
FD-BOM-62W 10.5 15 20 30 24
FD-BOM-95 10.5 19 25 26 21
FD-BOM-002 10.5 25.5 35 27 19.5
FD-IRU-02 12 20 30 23 11
FD-DOP-62 12.5 19.5 25 13 8
FD-SPE-08 12.5 19.5 31 27.5 23.5
FD-TWO-01 12.5 19.5 45 15.5 5.5
FD-AGM-509 12.5 25 35 12 8
FD-IND-901 12.5 25 50 10 4
FD-TWO-02 12.5 25.5 35 27 19.5
FD-BOM-004 12.75 25.5 35 45 41
FD-CON-92 13 25.4 44.5 17.3 8
FD-BOM-63 13 19 23 45 41.5
FD-ZZZ-22 13 25.5 44.5 17.8 8.4
FD-BOM-64 15.2 25.5 35 47.5 41
FD-BRN-901 14.5 20 35 11 6
FD-SPE-02 14.5 20.5 30 35 23.5
FD-ORS-CON 14.5 22 35 27 17.5
FD-SPE-CON 14.5 25 30 35 19.5
FD-POR-01 14.5 25 35 25 21
FD-ORS-002 14.5 25.5 35 26.5 16.5
FD-BOM-001 15.5 25.5 35 27 19.5
FD-SOV-61 16.2 25 35 12 8
FD-SCH-62 16.5 24 30 -- 30
FD-FEI-001 16.5 24.5 32 24 12
FD-SRE-01 16.5 25.5 35 27 20
FD-ZZZ-21 16.5 25.5 50 19.8 9.1

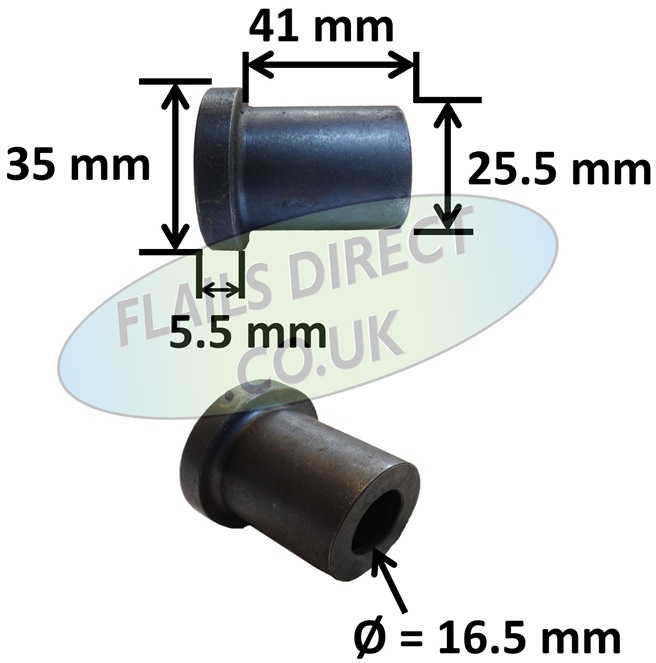

FD-BOM-003 16.5 25.5 35 48 40
FD-ROU-63 17 24 30 36 30
FD-ROU-66 17 24 -- 37 --
FD-GIL-85 20 28 60 20 13
FD-CON-93 20 34 50 22 10.5
FD-CON-96 20.5 34 50 22 12.5
FD-SCH-87 29 38.5 63 28.5 14

Bushes

Part No Internal Diameter(D) External Diameter(B) Length (L)
FD-JAC-03 8 14 15.5
FD-BOM-0585601 8 15 11.5
FD-ROU-64 8.5 12 11
FD-BUSH-03 8.5 14 25
FD-ROU-65 8.5 15 9
FD-TRI-02 10 16 12
FD-CHAP-01 10.5 14.5 16
FD-DRG-91 10.5 16 14.5
FD-MUT-02 10.5 20 18
FD-9001 10.5 20 20
FD-BUSH-01 10.5 25 39
FD-MUL-85 11 16 63
FD-MEA-16 11.5 20 48

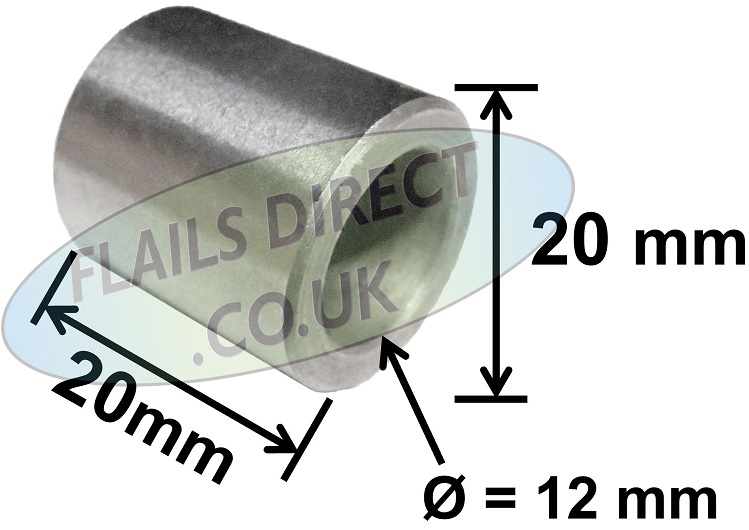

FD-VOT-61 12 20 20
FD-SMA-61 12 20 22
FD-ROU-62 12 20 25
FD-MUL-63 12 20 25
FD-FIS-94 12.1 25 9
FD-BUSH-07 12.5 14.2 11
FD-WEX-02 12.5 16 11
FD-DUC-91 12.5 17.5 15
FD-BRN-03 12.5 20 12
FD-DUC-906 12.5 20 16
FD-PER-61 12.5 20 23
FD-ROU-62E 12.5 20 26
FD-IND-902 12.5 29.5 50
FD-AGM-508 12.5 30 49.5
FD-RM-801/S 12.75 20 44
FD-BUSH-11 12.75 22 44
FD-BUSH-10 12.75 25 35
FD-BUSH-12 12.75 25 44
FD-ZZZ-18 13 17.5 35
FD-JDE-900 13 22 14.5
FD-CON-009 13 22 35
FD-ZZZ-19 13 22 35
FD-DOP-61 13 22 40
FD-CON-009A 13 23 35
FD-FEI-18 13 25 63.5
FD-DUC-902 13.5 30 16.5
FD-AGM-506 14.5 20 17
FD-MUL-64 14.5 25 22
FD-BUSH-05 14.5 25 40
FD-AGM-507 14.5 32 16
FD-BUSH-02 15.5 20.5 53
FD-WIC-01 16 21.8 51.8
FD-BOM-91 16 24 21.5
FD-KUH-909 16 24 29.5
FD-ROU-61 16 24 61
FD-ROE-92 16 25 11.5
FD-MEA-15 16 25 16
FD-TUR-81 16 25 21
FD-BOM-61 16 25 25.5
FD-ZZZ-20 16 25 39
FD-AGM-500 16 25 49
FD-GIL-86 16 25 103
FD-BOM-67 16 28 54
FD-BRE-01 16.5 24.9 68
FD-KID-01 16.5 25 11
FD-FEI-63 16.5 25 28
FD-FEI-65 16.5 25 32.5
FD-CON-007S 16.5 25 38
FD-CON-007 16.5 25 39.5
FD-ZZZ-23 16.5 25 44
FD-CON-007/L 16.5 25 44
FD-BUSH-09 16.5 25 55
FD-CNC-02 16.5 25 57.5
FD-BUSH-04 16.5 25.5 72
FD-FIS-92 16.5 28 11
FD-DUC-907 16.5 28 53
FD-DUC-001 16.5 28 53.5
FD-ORS-SP 16.5 40 10
FD-BRE-01A 16.5 25 68
FD-HER-61 16.5 40 30
FD-KUH-903 16.5 40 11.5
FD-PRO-07 17 25 13
FD-DES-02 17 25 17
FD-IND-07-1 17 25 19
FD-FEI-14 17 25 25
FD-FEI-17 17 25 19
FD-ZZZ-48 17 25 73
FD-LAG-03 17 25 80
FD-BAM-02 18 30 13
FD-DUC-912 18.2 28 84
FD-BUSH-14 18.5 25 72
FD-NIC-61 20 28 30
FD-TAA-05 20 28 39
FD-REK-03 20 28 40
FD-SPR-53 20 28 45
FD-MUL-65 20 28 55
FD-BUSH-08 20.5 25 40
FD-AGR-80 20.5 34 21
FD-AGR-81 20.5 34 58
FD-BUSH-13 20.5 35 16.5
FD-PER-66 21 26.9 19.8
FD-SAU-02 21 28 40
FD-CAE-01 21 28 41
FD-SAU-07 21 28 70
FD-SAU-05 21 29 70
FD-EPO-84 21 35 35
FD-AGM-502 22 32 35
FD-SAU-124 24 42 45
FD-CON-97 24.5 38 14
FD-SOV-501 25 45 19
FD-CNC-03 25.5 40 30
FD-NOB-09 25.5 35 54
FD-SPH-90 25.5 38 14
FD-IND-62 25.5 51 14
FD-KUH-902 25.5 51 17
FD-SAU-06 29 45 45
FD-IND-900 30.5 50 16

Washer

PART NO Internal Diameter (D) Thickness (L) External Diameter (B)
FD-AGR-55 10.5 4 25
FD-MUL-86 11 4 25
FD-AS-09 12.5 6 34.5
FD-FIS-93 13 5 40
FD-FEI-19 13 8 35
FD-EPO-82 14 3 28
FD-AGM-505 14.5 4 35
FD-WAS-03 14.5 11.5 25
FD-9000 15 2.5 24
FD-AGM-503 16.5 4 35
FD-WAS-01 16.5 9.5 40
FD-DUC-908 17 3 30
FD-FEI-64 17 3 35
FD-ROU-82 17 5 31.5
FD-FIS-91 17 6 40
FD-AS-10 18.3 1.25 35.5
FD-1001 19 3 30
FD-HYM-901 20.4 5.25 40
FD-CON-MAG 25 9 30
FD-FEI-48 25 9.5 51
FD-WAS-02 25.4 22 40
FD-AGM-504 25.5 4 50
FD-VIG-901 28 7 48
FD-BRT-09S 28 10 50
FD-ZZZ-47 28 12 45
FD-BRT-09 30 10 55
