Shackle Sizes - Flails Direct

Shackles

Part Number	Outside Width (L)	Hole Size(B)	Height (H)	Thickness (D)	Inside Width (A)
FD-bom-71	37	--	46	8	20

FD-gil-72	40	10.5	78	10	20

FD-gil-71	40	12.5	73	10	20

FD-vot-71	45	10	73	10	24

Part Number	Outside Width (L)	Hole Size(B)	Height (H)	Thickness (D)	Inside Width (A)
FD-agr-71	25.5	8.3	36	7.5	10

FD-rou-73	26	8.5	40	8	10

FD-han-71	35	10.5	47	10	16

FD-han-72	37	10.5	47	10	17

FD-mal-25	34	12.5	54	10	14

FD-bom-77	34	25.5	60	13	14

FD-mcc-05	35	25.5	60	13	16

FD-kuh-905	37	16.5	53	11.5	16

FD-bom-74	38	16.5	57	11	15.5

FD-trr-03	39	9	37	8	22.5

FD-duc-901	40	12.5	54	11	18

FD-duc-914	39	12.5	54	13	19

FD-duc-900	40	12.5	66	11	18

FD-tur-01	40	14.5	62	12	17

FD-agt-91	40.5	9	41	8	22

FD-hmf-06	44	11	52.5	11	22

FD-car-51	45	11	53	11	23.5

FD-spe-05	45	20.5	50	13.5	20

FD-bom-72	46	15	45	13.5	28

FD-rou-72	49	11	54	11	29

FD-bom-73	47.5	15.5	76	13	22

FD-mue-99	48	10.5	32	11	28

FD-sma-71	48	11	55	14	23

FD-mul-71	48	11.5	52	11	26.5

FD-ors-02	48	12.5	52	11	26.5

FD-yyy-72	48	12.5	54	12	24

FD-uni-07	48	15.5	60	13	22

FD-mut-05	49	10.5	53	11	27

FD-sma-74	49	12.5	56	13	23

FD-ors-08	49	14.5	56	13	22.5

FD-sma-75	49	14.5	56	13	23

FD-ors-09	49	16.5	56	13	22.5

FD-prz-04	50	11.5	50	12	27.5

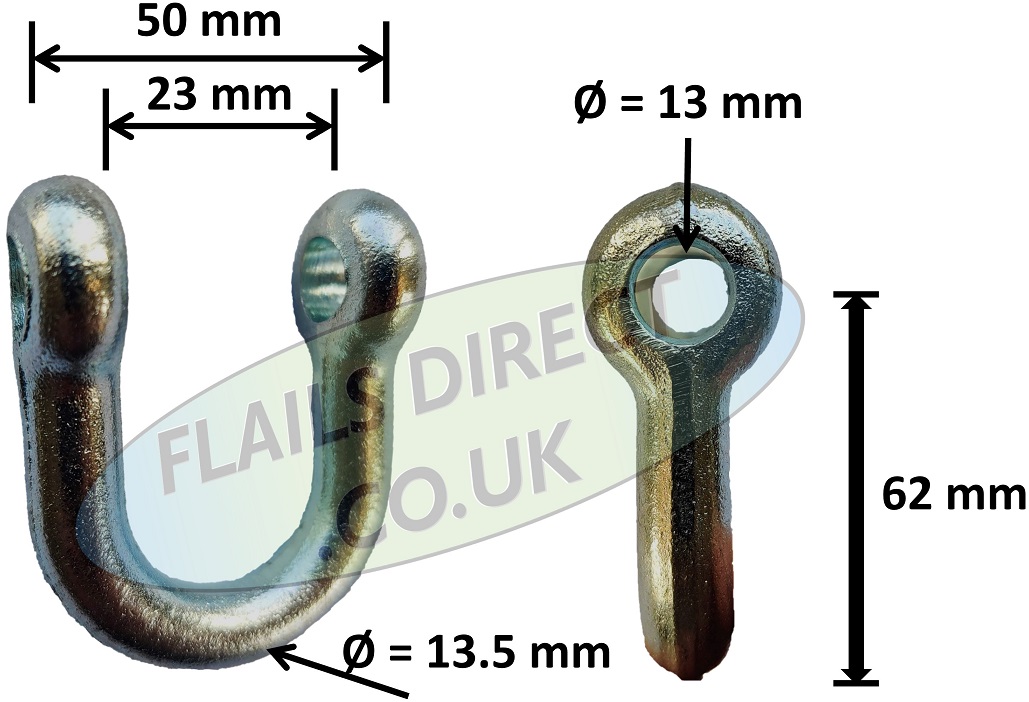

FD-rou-76	50	13	62	13.5	23

FD-bom-75	50.5	16.5	76	13.5	24

FD-kuh-908	56	14.5	77	13	30.5

Part Number	Outside Width (L)	Hole Size(B)	Height (H)	Thickness (D)	Inside Width (A)
FD-ROU-75	24	8.5	42	7	10

FD-HER-71	33	12.5	79	11	11

FD-DUC-909	39	12.5	70	13	17

FD-KUH-906	39	16.5	68.5	12.5	13

FD-DUC-905	39.5	12	67	11.5	17

FD-TUR-004	40	15	75	12.5	14.5

FD-VOT-63	43.5	11.5	67	11	21.5

FD-HEM-92	44	13	83	13	18

FD-nic-70	46	12	66	11	24

FD-epo-72	46	13.5	75	13	20

FD-YYY-74	48	11	63	11	26.5

FD-ROU-71	48	11.5	60	11	26

FD-FEI-50	48	12.4	66	11	26

FD-GIL-73	48	12.5	65	11	26

FD-TUR-72	48	14.5	73	13	23

FD-mul-73	48.5	11.5	80	12.5	23

FD-TUR-73	49	11.5	73	13	23

FD-mul-74	49	13.5	80	12.5	23

FD-SMA-72	49	14.5	74	13	23

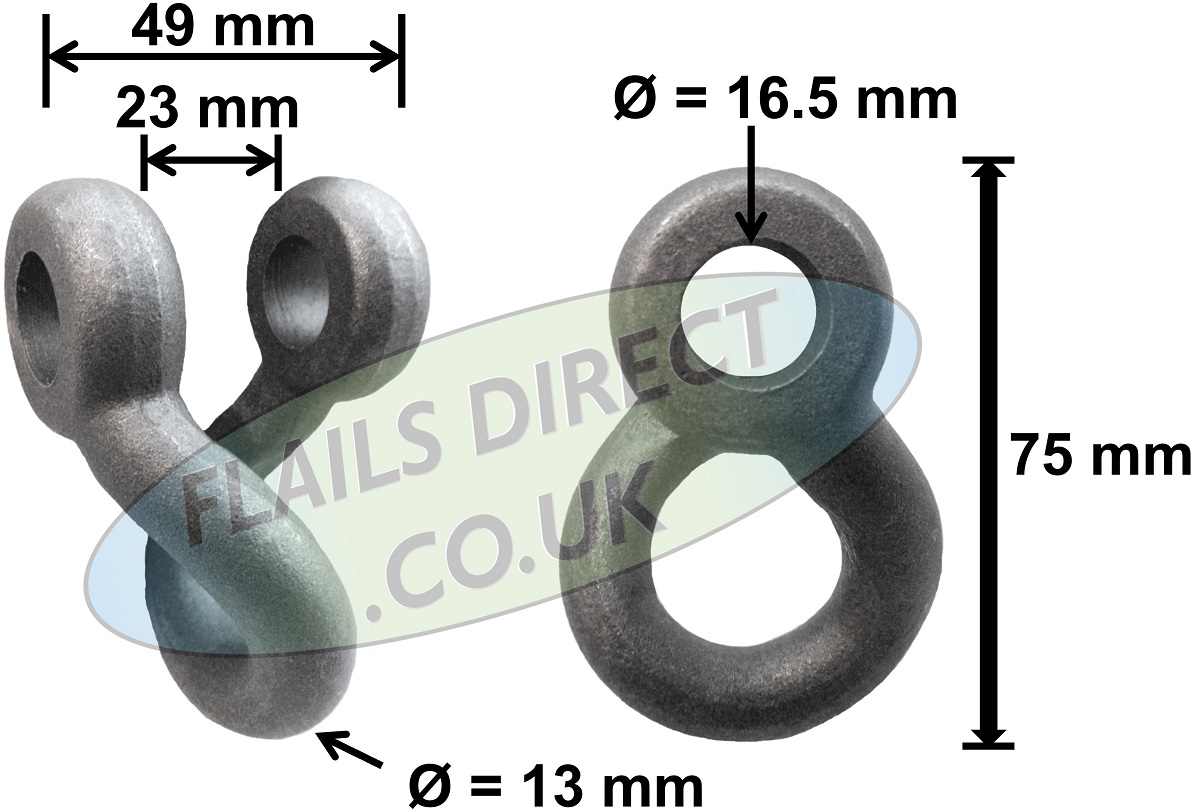

FD-uni-38	49	16.5	75	13	23

FD-KUH-907	56	14.5	61	13	29

Part Number	Outside Width (L)	Hole Size(B)	Height (H)	Thickness (D)	Inside Width (A)
FD-EPO-74	32	--	83	10	12

FD-EPO-76	38	--	69	10	18

FD-EPO-71	42	--	71	11	20

FD-TUR-71	42	--	77	11	20
